组件＆Vue3生命周期

来源：Vue3 + vite + Ts + pinia + 实战 + 源码 +electron

组件

每一个.vue文件都可以充当组件使用，每一个组件都可以复用。

App.vue：

<template>
  <div>
    <h1>1145141919810</h1>
    <!-- 组件可以进行复用，还可以做循环、嵌套、传参 -->
    <A></A>
    <A></A>
    <A></A>
  </div>
</template>

<script setup lang="ts">
import { ref, reactive } from "vue"

// 不能和html标签名起冲突
// import div from "@/components/A.vue"
import A from "@/components/A.vue"

// 在Vue2中需要通过components选项对组件进行注册，但Vue3中不需要（开箱即用）
// component: {
// A
// }
</script>

A.vue：

<template>
  <div>
    <p>我是一个组件</p>
    <hr>
  </div>
</template>

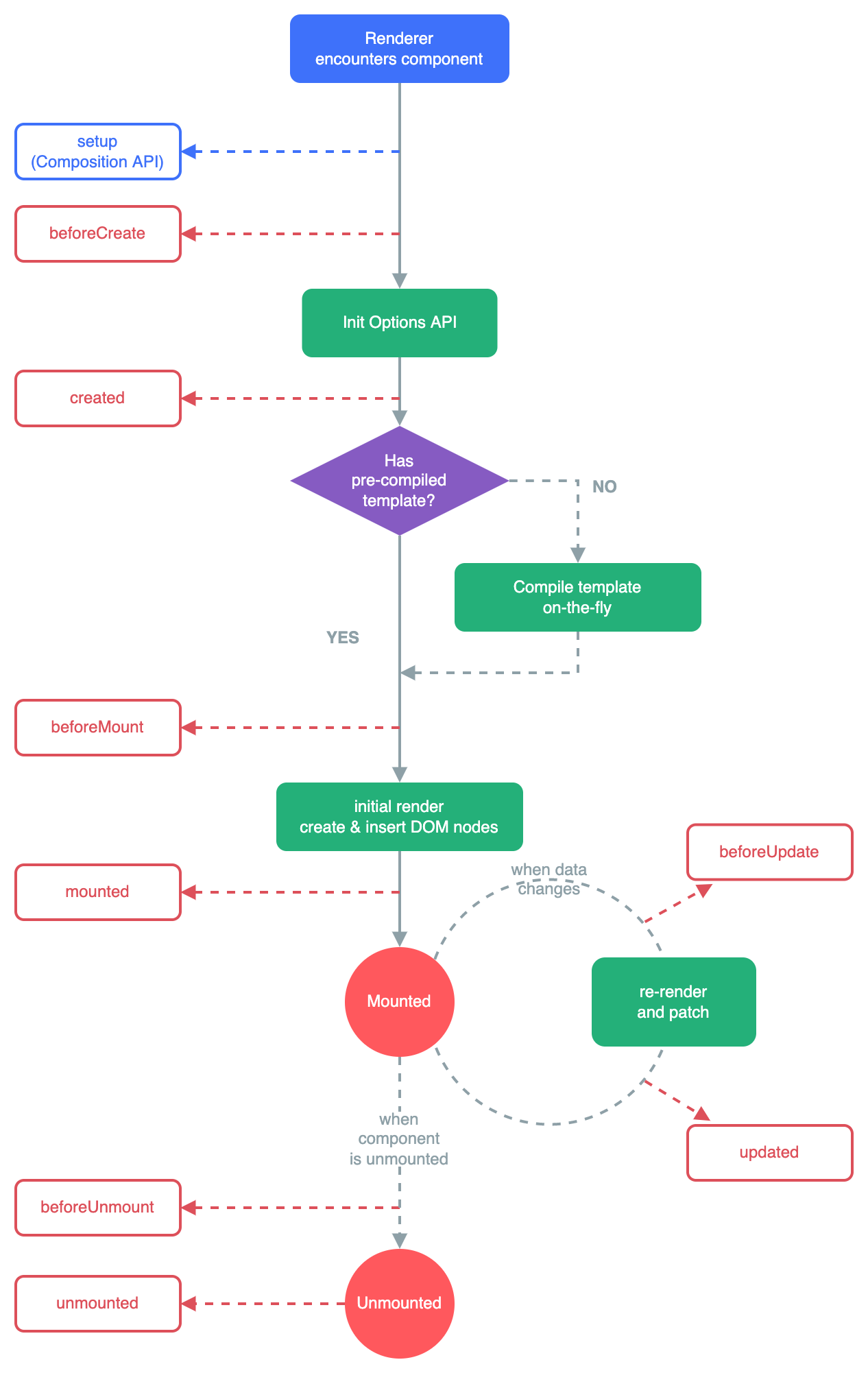

Vue3生命周期

一个组件从创建到销毁的全过程。

App.vue：

<template>
  <div>
    <h1>1145141919810</h1>
    <!-- 当组件绑定了v-if，flag值变化时会触发组件的创建或销毁，而v-show不会 -->
    <A v-if="flag"></A>
    <A v-if="flag"></A>
    <button @click="flag=!flag">创建/销毁</button>
  </div>
</template>

<script setup lang="ts">
import { ref, reactive } from "vue"
import A from "@/components/A.vue"
const flag = ref<Boolean>(false)
</script>

A.vue：

<template>
  <div>
    <p>我是一个组件</p>
    <div ref="div">{{ str }}</div>
    <button @click="change">修改str</button>
    <hr>
  </div>
</template>

<script setup lang="ts">
// 在setup语法糖模式中没有beforeCreate和created（因为相当于setup）
import { getCurrentInstance, ref, onBeforeMount, onMounted, onBeforeUpdate, onUpdated, onBeforeUnmount, onUnmounted, onRenderTracked, onRenderTriggered } from "vue"

const str = ref<string>("野兽先辈")
const div = ref<HTMLDivElement>()
const instance = getCurrentInstance()

const change = ()=> {
  str.value = str.value + 1
}

// 在setup时还读不到任何DOM元素
// 可以看到这些生命周期函数都被注册到组件实例上了
console.log("setup", div.value, instance)

// 挂载前
onBeforeMount(()=> {
  // 在onBeforeMount时还读不到任何DOM元素
  console.log("onBeforeMount", div.value)
})

// 挂载后
onMounted(()=> {
  // 从onMounted开始能读到DOM元素了
  console.log("onMounted", div.value)
})

// 更新前
onBeforeUpdate(()=> {
  // 在onBeforeUpdate时DOM元素还未被更新
  console.log("onBeforeUpdate", div.value?.innerText)
})

// 更新后
onUpdated(()=> {
  // 从onUpdated开始DOM元素已被更新了
  console.log("onUpdated", div.value?.innerText)
})

// 销毁前
onBeforeUnmount(()=> {
  // 在onBeforeUnmount时还能读到DOM元素
  console.log("onBeforeUnmount", div.value)
})

// 销毁后
onUnmounted(()=> {
  // 从onUnmounted开始组件已经被销毁了，自然读不到DOM元素了
  console.log("onUnmounted", div.value)
})

// 收集依赖时
onRenderTracked((e)=> {
  // 用来调试代码，e其实就是一个effect对象
  console.log("onRenderTracked", e)
})

// 更新依赖时
onRenderTriggered((e)=> {
  // 用来调试代码，e其实就是一个effect对象
  console.log("onRenderTriggered", e)
})
</script>

源码

在Vue源码（/package/runtime-core/src/apiLifecycle.ts）中可以看到watch的源码。

// 在这个函数里创建钩子并作缓存
export function injectHook(
  type: LifecycleHooks,
  hook: Function & { __weh?: Function },
  target: ComponentInternalInstance | null = currentInstance,
  prepend: boolean = false
): Function | undefined {
  if (target) {
    // 如果有钩子函数直接返回，否则创建一个空数组（Function类型数组）
    const hooks = target[type] || (target[type] = [])
    // cache the error handling wrapper for injected hooks so the same hook
    // can be properly deduped by the scheduler. "__weh" stands for "with error
    // handling".
    const wrappedHook =
      hook.__weh ||
      (hook.__weh = (...args: unknown[]) => {
        // 如果组件卸载了，什么都不做
        if (target.isUnmounted) {
          return
        }
        // disable tracking inside all lifecycle hooks
        // since they can potentially be called inside effects.
        // 停止依赖收集，避免重复收集依赖（在组件初始化时就收集过依赖了）
        pauseTracking()
        // Set currentInstance during hook invocation.
        // This assumes the hook does not synchronously trigger other hooks, which
        // can only be false when the user does something really funky.
        // 设target为当前组件实例
        setCurrentInstance(target)
        // 执行钩子函数
        const res = callWithAsyncErrorHandling(hook, target, type, args)
        // 清空当前组件实例
        unsetCurrentInstance()
        // 恢复依赖收集
        resetTracking()
        return res
      })
    if (prepend) {
      hooks.unshift(wrappedHook)
    } else {
      // 添加hook
      hooks.push(wrappedHook)
    }
    return wrappedHook
  } else if (__DEV__) {
    const apiName = toHandlerKey(ErrorTypeStrings[type].replace(/ hook$/, ''))
    warn(
      `${apiName} is called when there is no active component instance to be ` +
        `associated with. ` +
        `Lifecycle injection APIs can only be used during execution of setup().` +
        (__FEATURE_SUSPENSE__
          ? ` If you are using async setup(), make sure to register lifecycle ` +
            `hooks before the first await statement.`
          : ``)
    )
  }
}

// 注册生命周期，使用函数柯里化封装，因为此处只是第一个参数不同，其他的都相同
export const createHook =
  <T extends Function = () => any>(lifecycle: LifecycleHooks) =>
  (hook: T, target: ComponentInternalInstance | null = currentInstance) =>
    // post-create lifecycle registrations are noops during SSR (except for serverPrefetch)
    (!isInSSRComponentSetup || lifecycle === LifecycleHooks.SERVER_PREFETCH) &&
    injectHook(lifecycle, (...args: unknown[]) => hook(...args), target)

// 导出一些钩子函数，它们都调用了createHook函数，并传入一个参数（枚举）
// 因为生命周期钩子函数是在组件生命周期的各个阶段去执行的，所以把这些钩子放到组件实例上
// export const enum LifecycleHooks {
//   BEFORE_CREATE = 'bc',
//   CREATED = 'c',
//   BEFORE_MOUNT = 'bm',
//   MOUNTED = 'm',
//   BEFORE_UPDATE = 'bu',
//   UPDATED = 'u',
//   BEFORE_UNMOUNT = 'bum',
//   UNMOUNTED = 'um',
//   DEACTIVATED = 'da',
//   ACTIVATED = 'a',
//   RENDER_TRIGGERED = 'rtg',
//   RENDER_TRACKED = 'rtc',
//   ERROR_CAPTURED = 'ec',
//   SERVER_PREFETCH = 'sp'
// }
export const onBeforeMount = createHook(LifecycleHooks.BEFORE_MOUNT)
export const onMounted = createHook(LifecycleHooks.MOUNTED)
export const onBeforeUpdate = createHook(LifecycleHooks.BEFORE_UPDATE)
export const onUpdated = createHook(LifecycleHooks.UPDATED)
export const onBeforeUnmount = createHook(LifecycleHooks.BEFORE_UNMOUNT)
export const onUnmounted = createHook(LifecycleHooks.UNMOUNTED)
export const onServerPrefetch = createHook(LifecycleHooks.SERVER_PREFETCH)

钩子被注册后，在/package/runtime-core/src/render.ts的一些生命周期对应阶段会调用

// 挂载和更新
const setupRenderEffect: SetupRenderEffectFn = (
    instance,
    initialVNode,
    container,
    anchor,
    parentSuspense,
    isSVG,
    optimized
  ) => {
    const componentUpdateFn = () => {
      // 如果当前组件没有挂载
      if (!instance.isMounted) {
        let vnodeHook: VNodeHook | null | undefined
        const { el, props } = initialVNode
        const { bm, m, parent } = instance
        const isAsyncWrapperVNode = isAsyncWrapper(initialVNode)

        toggleRecurse(instance, false)
        // beforeMount hook
        // 执行beforeMount钩子
        if (bm) {
          invokeArrayFns(bm)
        }
        // onVnodeBeforeMount
        if (
          !isAsyncWrapperVNode &&
          (vnodeHook = props && props.onVnodeBeforeMount)
        ) {
          invokeVNodeHook(vnodeHook, parent, initialVNode)
        }
        if (
          __COMPAT__ &&
          isCompatEnabled(DeprecationTypes.INSTANCE_EVENT_HOOKS, instance)
        ) {
          instance.emit('hook:beforeMount')
        }
        toggleRecurse(instance, true)

        // 执行完beforeMount钩子后进行渲染
        if (el && hydrateNode) {
          // vnode has adopted host node - perform hydration instead of mount.
          const hydrateSubTree = () => {
            if (__DEV__) {
              startMeasure(instance, `render`)
            }
            instance.subTree = renderComponentRoot(instance)
            if (__DEV__) {
              endMeasure(instance, `render`)
            }
            if (__DEV__) {
              startMeasure(instance, `hydrate`)
            }
            hydrateNode!(
              el as Node,
              instance.subTree,
              instance,
              parentSuspense,
              null
            )
            if (__DEV__) {
              endMeasure(instance, `hydrate`)
            }
          }

          if (isAsyncWrapperVNode) {
            ;(initialVNode.type as ComponentOptions).__asyncLoader!().then(
              // note: we are moving the render call into an async callback,
              // which means it won't track dependencies - but it's ok because
              // a server-rendered async wrapper is already in resolved state
              // and it will never need to change.
              () => !instance.isUnmounted && hydrateSubTree()
            )
          } else {
            hydrateSubTree()
          }
        } else {
          if (__DEV__) {
            startMeasure(instance, `render`)
          }
          const subTree = (instance.subTree = renderComponentRoot(instance))
          if (__DEV__) {
            endMeasure(instance, `render`)
          }
          if (__DEV__) {
            startMeasure(instance, `patch`)
          }
          // 挂载Vnode到容器中
          patch(
            null,
            subTree,
            container,
            anchor,
            instance,
            parentSuspense,
            isSVG
          )
          if (__DEV__) {
            endMeasure(instance, `patch`)
          }
          // el是DOM元素，此时已经可以读到它了
          initialVNode.el = subTree.el
        }
        // mounted hook
        // 执行mounted钩子
        if (m) {
          queuePostRenderEffect(m, parentSuspense)
        }
        // onVnodeMounted
        if (
          !isAsyncWrapperVNode &&
          (vnodeHook = props && props.onVnodeMounted)
        ) {
          const scopedInitialVNode = initialVNode
          queuePostRenderEffect(
            () => invokeVNodeHook(vnodeHook!, parent, scopedInitialVNode),
            parentSuspense
          )
        }
        if (
          __COMPAT__ &&
          isCompatEnabled(DeprecationTypes.INSTANCE_EVENT_HOOKS, instance)
        ) {
          queuePostRenderEffect(
            () => instance.emit('hook:mounted'),
            parentSuspense
          )
        }

        // activated hook for keep-alive roots.
        // #1742 activated hook must be accessed after first render
        // since the hook may be injected by a child keep-alive
        if (
          initialVNode.shapeFlag & ShapeFlags.COMPONENT_SHOULD_KEEP_ALIVE ||
          (parent &&
            isAsyncWrapper(parent.vnode) &&
            parent.vnode.shapeFlag & ShapeFlags.COMPONENT_SHOULD_KEEP_ALIVE)
        ) {
          instance.a && queuePostRenderEffect(instance.a, parentSuspense)
          if (
            __COMPAT__ &&
            isCompatEnabled(DeprecationTypes.INSTANCE_EVENT_HOOKS, instance)
          ) {
            queuePostRenderEffect(
              () => instance.emit('hook:activated'),
              parentSuspense
            )
          }
        }
        instance.isMounted = true

        if (__DEV__ || __FEATURE_PROD_DEVTOOLS__) {
          devtoolsComponentAdded(instance)
        }

        // #2458: deference mount-only object parameters to prevent memleaks
        initialVNode = container = anchor = null as any
      } else {
        // updateComponent
        // This is triggered by mutation of component's own state (next: null)
        // OR parent calling processComponent (next: VNode)
        let { next, bu, u, parent, vnode } = instance
        let originNext = next
        let vnodeHook: VNodeHook | null | undefined
        if (__DEV__) {
          pushWarningContext(next || instance.vnode)
        }

        // Disallow component effect recursion during pre-lifecycle hooks.
        toggleRecurse(instance, false)
        if (next) {
          next.el = vnode.el
          updateComponentPreRender(instance, next, optimized)
        } else {
          next = vnode
        }

        // beforeUpdate hook
        // 执行beforeUpdate钩子
        if (bu) {
          invokeArrayFns(bu)
        }
        // onVnodeBeforeUpdate
        if ((vnodeHook = next.props && next.props.onVnodeBeforeUpdate)) {
          invokeVNodeHook(vnodeHook, parent, next, vnode)
        }
        if (
          __COMPAT__ &&
          isCompatEnabled(DeprecationTypes.INSTANCE_EVENT_HOOKS, instance)
        ) {
          instance.emit('hook:beforeUpdate')
        }
        toggleRecurse(instance, true)

        // render
        // 执行beforeUpdate钩子后也要进行渲染
        if (__DEV__) {
          startMeasure(instance, `render`)
        }
        const nextTree = renderComponentRoot(instance)
        if (__DEV__) {
          endMeasure(instance, `render`)
        }
        const prevTree = instance.subTree
        instance.subTree = nextTree

        if (__DEV__) {
          startMeasure(instance, `patch`)
        }
        patch(
          prevTree,
          nextTree,
          // parent may have changed if it's in a teleport
          hostParentNode(prevTree.el!)!,
          // anchor may have changed if it's in a fragment
          getNextHostNode(prevTree),
          instance,
          parentSuspense,
          isSVG
        )
        if (__DEV__) {
          endMeasure(instance, `patch`)
        }
        next.el = nextTree.el
        if (originNext === null) {
          // self-triggered update. In case of HOC, update parent component
          // vnode el. HOC is indicated by parent instance's subTree pointing
          // to child component's vnode
          updateHOCHostEl(instance, nextTree.el)
        }
        // updated hook
        // 执行updated钩子
        if (u) {
          queuePostRenderEffect(u, parentSuspense)
        }
        // onVnodeUpdated
        // 组件更新后执行，此时DOM已经更新
        if ((vnodeHook = next.props && next.props.onVnodeUpdated)) {
          queuePostRenderEffect(
            () => invokeVNodeHook(vnodeHook!, parent, next!, vnode),
            parentSuspense
          )
        }
        if (
          __COMPAT__ &&
          isCompatEnabled(DeprecationTypes.INSTANCE_EVENT_HOOKS, instance)
        ) {
          queuePostRenderEffect(
            () => instance.emit('hook:updated'),
            parentSuspense
          )
        }

        if (__DEV__ || __FEATURE_PROD_DEVTOOLS__) {
          devtoolsComponentUpdated(instance)
        }

        if (__DEV__) {
          popWarningContext()
        }
      }
    }

    // create reactive effect for rendering
    const effect = (instance.effect = new ReactiveEffect(
      componentUpdateFn,
      () => queueJob(update),
      instance.scope // track it in component's effect scope
    ))

    const update: SchedulerJob = (instance.update = () => effect.run())
    update.id = instance.uid
    // allowRecurse
    // #1801, #2043 component render effects should allow recursive updates
    toggleRecurse(instance, true)

    if (__DEV__) {
      effect.onTrack = instance.rtc
        ? e => invokeArrayFns(instance.rtc!, e)
        : void 0
      effect.onTrigger = instance.rtg
        ? e => invokeArrayFns(instance.rtg!, e)
        : void 0
      update.ownerInstance = instance
    }

    update()
  }

// 卸载
const unmount: UnmountFn = (
    vnode,
    parentComponent,
    parentSuspense,
    doRemove = false,
    optimized = false
  ) => {
    const {
      type,
      props,
      ref,
      children,
      dynamicChildren,
      shapeFlag,
      patchFlag,
      dirs
    } = vnode
    // unset ref
    if (ref != null) {
      setRef(ref, null, parentSuspense, vnode, true)
    }

    if (shapeFlag & ShapeFlags.COMPONENT_SHOULD_KEEP_ALIVE) {
      ;(parentComponent!.ctx as KeepAliveContext).deactivate(vnode)
      return
    }

    const shouldInvokeDirs = shapeFlag & ShapeFlags.ELEMENT && dirs
    const shouldInvokeVnodeHook = !isAsyncWrapper(vnode)

    let vnodeHook: VNodeHook | undefined | null
    if (
      shouldInvokeVnodeHook &&
      (vnodeHook = props && props.onVnodeBeforeUnmount)
    ) {
      invokeVNodeHook(vnodeHook, parentComponent, vnode)
    }

    if (shapeFlag & ShapeFlags.COMPONENT) {
      // 清除组件引用的effect副作用函数
      unmountComponent(vnode.component!, parentSuspense, doRemove)
    } else {
      if (__FEATURE_SUSPENSE__ && shapeFlag & ShapeFlags.SUSPENSE) {
        vnode.suspense!.unmount(parentSuspense, doRemove)
        return
      }

      // 执行beforeUnmount钩子
      if (shouldInvokeDirs) {
        invokeDirectiveHook(vnode, null, parentComponent, 'beforeUnmount')
      }

      if (shapeFlag & ShapeFlags.TELEPORT) {
        ;(vnode.type as typeof TeleportImpl).remove(
          vnode,
          parentComponent,
          parentSuspense,
          optimized,
          internals,
          doRemove
        )
      } else if (
        dynamicChildren &&
        // #1153: fast path should not be taken for non-stable (v-for) fragments
        (type !== Fragment ||
          (patchFlag > 0 && patchFlag & PatchFlags.STABLE_FRAGMENT))
      ) {
        // fast path for block nodes: only need to unmount dynamic children.
        // 组件卸载完成后，清空当前组件下所有的子节点
        unmountChildren(
          dynamicChildren,
          parentComponent,
          parentSuspense,
          false,
          true
        )
      } else if (
        (type === Fragment &&
          patchFlag &
            (PatchFlags.KEYED_FRAGMENT | PatchFlags.UNKEYED_FRAGMENT)) ||
        (!optimized && shapeFlag & ShapeFlags.ARRAY_CHILDREN)
      ) {
        unmountChildren(children as VNode[], parentComponent, parentSuspense)
      }

      if (doRemove) {
        remove(vnode)
      }
    }

    // 卸载完成，执行unmounted钩子
    if (
      (shouldInvokeVnodeHook &&
        (vnodeHook = props && props.onVnodeUnmounted)) ||
      shouldInvokeDirs
    ) {
      queuePostRenderEffect(() => {
        vnodeHook && invokeVNodeHook(vnodeHook, parentComponent, vnode)
        shouldInvokeDirs &&
          invokeDirectiveHook(vnode, null, parentComponent, 'unmounted')
      }, parentSuspense)
    }
  }
